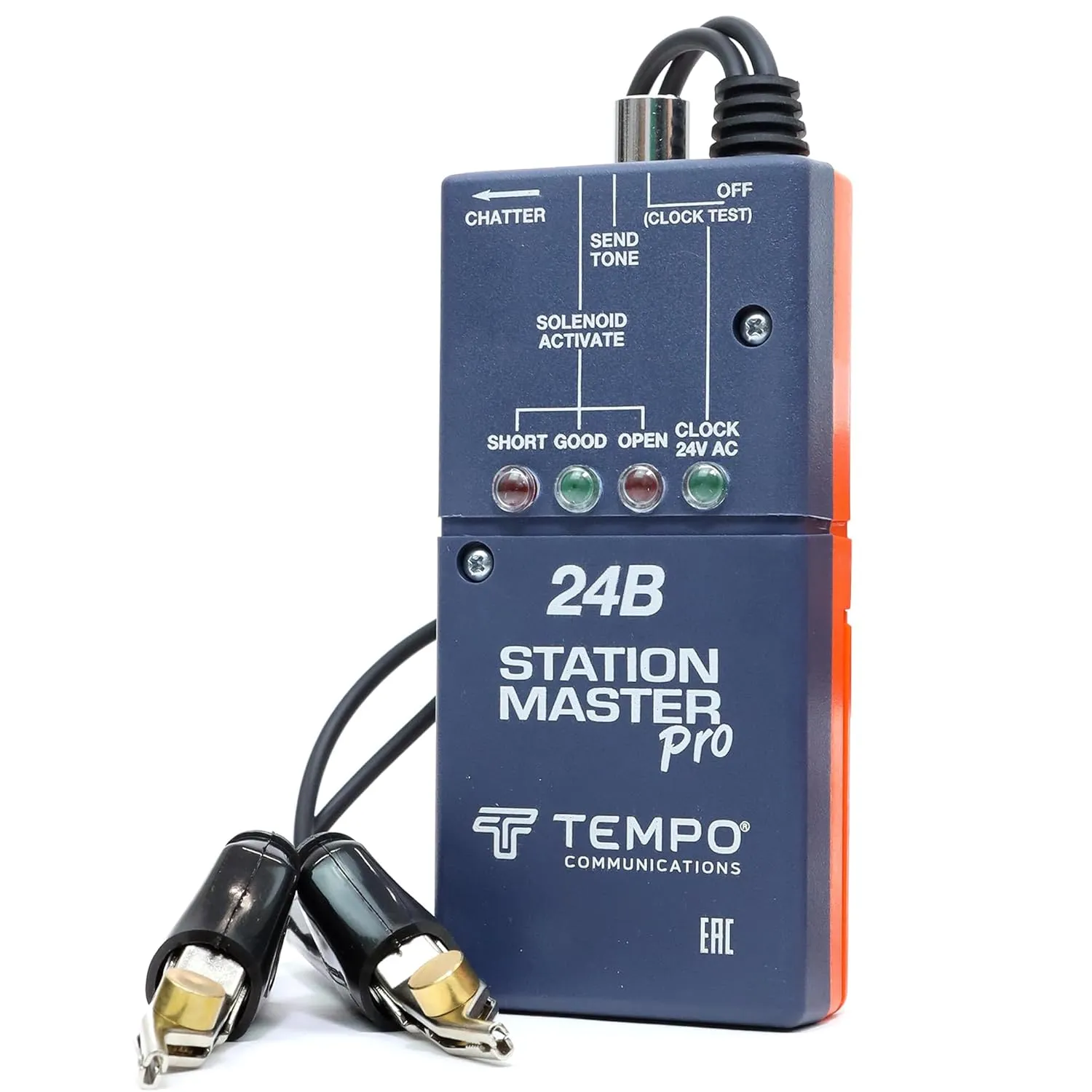

- PORTABLE IRRIGATION SYSTEM TESTER: The Model 24BK Station Master Pro is a highly portable, battery-operated irrigation system tester, ideal for quick troubleshooting and diagnosing faults in irrigation systems.

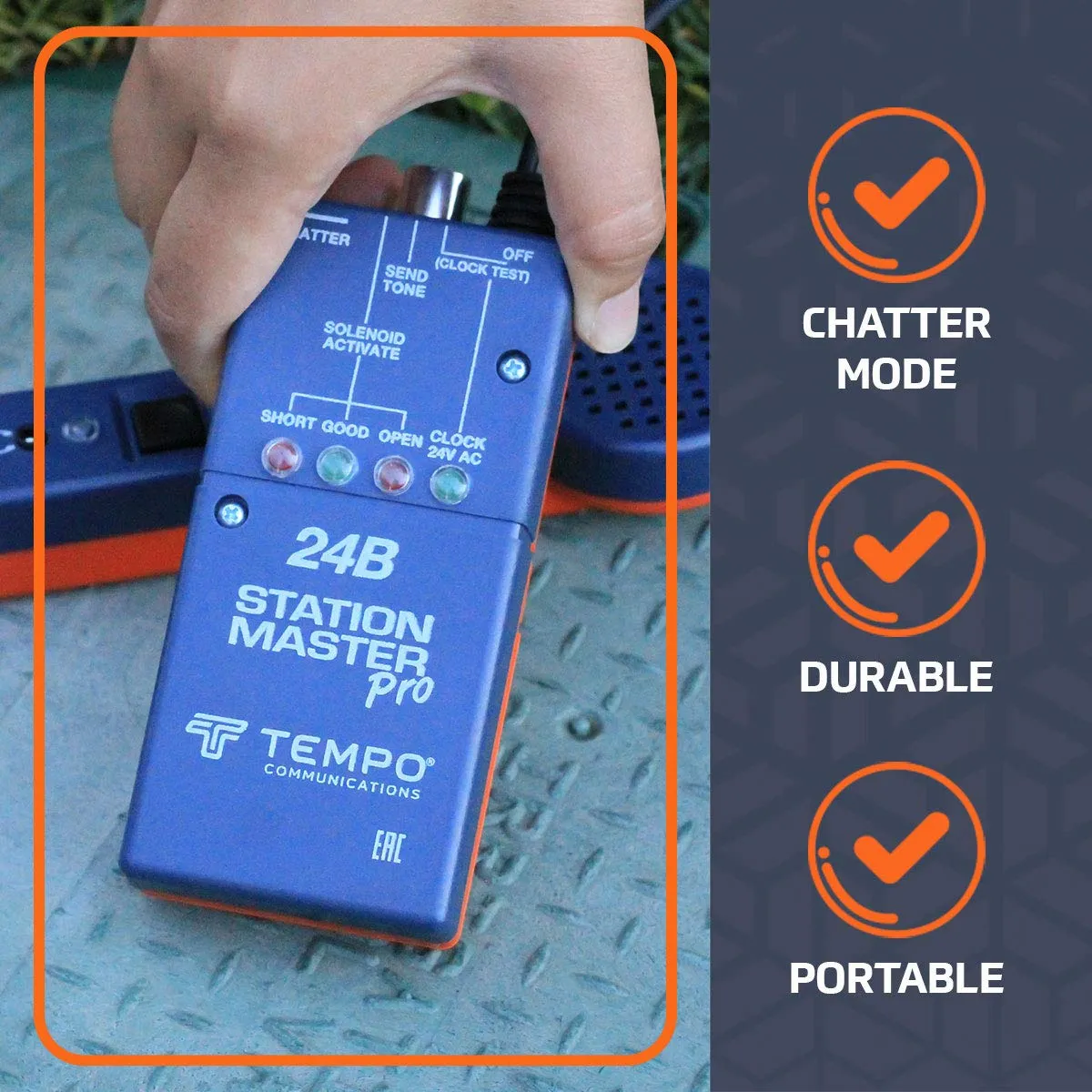

- QUICKLY DIAGNOSE FAULTS: The device quickly diagnoses faults with solenoid activation and wire identification. The solenoid activation mode activates valve solenoids easily, and the chatter mode aids in locating the valve by ear.
- EASY TO USE: The device has easy-to-understand LEDs to notify technicians of sufficient voltage supply and solenoid condition. It activates any 24V AC solenoid and sends a strong tracing tone to identify wires.
- DURABLE CONSTRUCTION: The Model 24BK Station Master Pro is built to last with a premium "bed-of-nails" and piercing pin bent nose clips for use on insulated wires. No cutting or stripping is needed, making it ideal for outdoor use in the field.
- VERSATILE: The tester is not dependent on the controller for valve solenoid testing, and it can safely hold open a working solenoid for hours. It also tones valve wires for identification and chatters underground solenoids for locating valve boxes by ear. Get your Model 24BK Station Master Pro today and keep your irrigation systems in top shape.
Product Description
Greenlee 24B Specifications: Electrical: Minimum voltage for clock LED: 15 V AC (LED intensity increases as voltage increases) Minimum battery while testing: 10.5 V DC Maximum input voltage between test leads: 28 V AC Maximum distance range to activate one solenoid: 12 AWG Loop 3000-13000 ft. (depending on battery condition) 14 AWG Loop 2000-8500 ft. 18 AWG Loop 500-3000 ft. Solenoid activate output voltage: 27 to 18 V AC Power Source: Battery: 2 - 9V Alkaline batteries Environment: Operating/storage temperature: 32°F to 122°F (0°C to 50°C) Relative humidity (max): 80% Physical: Length: 5.56 in. (141mm) Width: 2.34 in. (59.5mm) Depth: 1.0 in. (25.5mm) Weight: 0.6 lbs. (0.27kg) Greenlee 24B Features: Troubleshoot irrigation systems. Chatter mode for audible locating of valves. Activate any 24V AC valve solenoid. Test solenoids for continuity. Send tone to identify wires. Check clock AC voltage. Low battery indication. Easy-to-understand LEDs. Test leads with 'bed-of-nails' and piercing pin plips. Tracing valve wiring. Locates underground solenoids.
From the Manufacturer
Tempo continues its excellence in irrigation system troubleshooting with the introduction of the new Model 24B station master pro. The upgraded station master pro is a portable, battery-operated irrigation system diagnostic tester combining solenoid activation and wire identification. The easy-to-understand LEDs notify the technician if sufficient voltage is being supplied by the controller and the condition of the solenoid. The solenoid activation mode is used to activate valve solenoids either from the controller or at the valve, along with testing continuity of the solenoids. In chatter mode the station master pro will turn the solenoid off and on about once per second to aid in locating the valve by ear. In addition, the station master has the added functionality of providing tone generation to identify wires which can be traced with any tempo 200 series inductive amplifier. The Model 24B operates on two 9-Volt alkaline batteries and can safely hold open a working solenoid for hours. The test leads come equipped with premium "bed-of-nails" and piercing pin bent nose clips for use on insulated wires, allowing the technician to connect the unit without cutting or stripping the wires. The unit is housed in a high impact ABS plastic case designed to withstand the rigors of daily use in the field.
- Is Discontinued By Manufacturer : No
- Product Dimensions : 5.55 x 2.34 x 1 inches; 8.15 ounces
- Date First Available : July 27, 2009
- Manufacturer : Tempo Communications
- Country of Origin : USA
